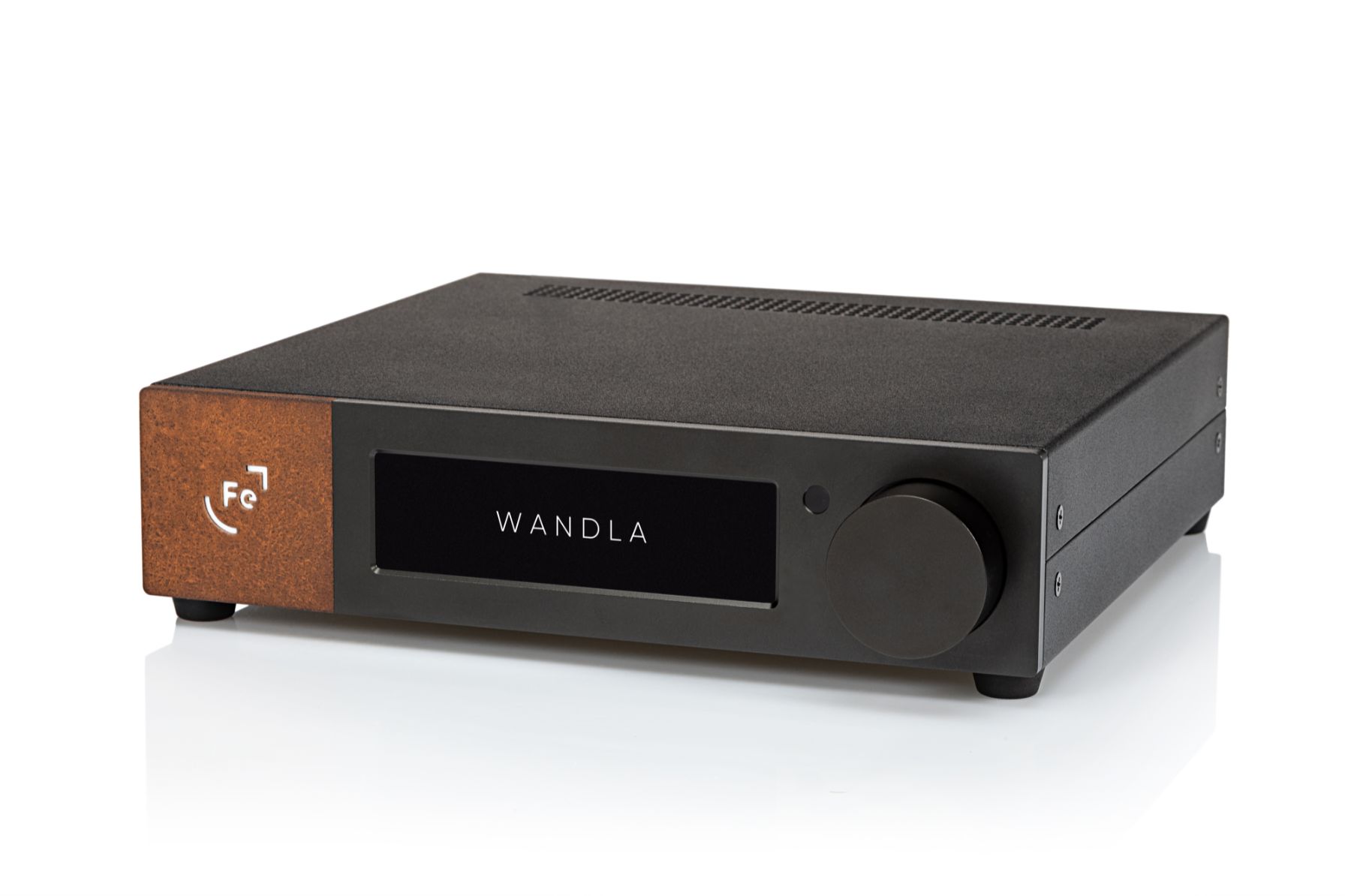

With WANDLA, we are making a statement to the current and next generation of music lovers. WANDLA represents tomorrow’s standard of high end digital-to-analog conversion. Think of WANDLA like a Formula 1 racing car. Like the F1 constructor’s team building the best racing car, Ferrum created the best engine for The Converter.

Tomorrow’s High End Audio Today

As The Converter WANDLA leads the way for tomorrow’s high end offering flagship audio quality at an unprecedented price.

Finely tuned DA conversion

WANDLA is the latest exemplar of Ferrum’s digital know-how and our in-house-developed analogue audio and electrical technology. The ESS Sabre ES9038PRO combined with Ferrum’s advanced new current-to-voltage (I/V) converter compares to units many times its price.

SERCE

Digital audio system module - Our optimized ARM chip offers the shortest signal path possible, making 5 chips redundant. Includes MQA decoder/renderer and digital filter selection.

Dynamic Digital Filtering

WANDLA has selected ESS digital filter, as a world first, four digital filters created for Ferrum by renowned filter-maker Signalyst, know for their HQPlayer app. More filters will follow after interacting with WANDLA users.

Optimized Digital inputs

Specially programmed USB, and tuned coaxial and optical S/PDIF, AES, ARC (TV) and I2S ports, optimized for audio.

Truly Balanced

The analog signal path is truly balanced. RCA inputs are converted to balanced at the first stage.

Proprietary amplification

Fully balanced modified IC pre-amplifier, fine tuned for WANDLA.

Ease of use

Newly developed hi-res touch screen with intuitive UX that is a dream to operate, including remote control.

Enhanced transparency

The whole design is focussed on a balanced and very transparent sound signature, making listening fatigue something of the past.

Made for HYPSOS

WANDLA performs beautifully right out of the box, but you can take its performance above and beyond when pairing it with HYPSOS. Using the proprietary Ferrum Power Link (FPL) connection with 4TSD voltage sensing, both components will perform to their absolute maximum, unleashing unheard-of musicality.







WANDLA

  • WANDLA fully balanced DAC/PREAMP
  • Proprietary fully balanced modified IC pre-amplifier, fine tuned for WANDLA
  • Specially programmed USB, and tuned coaxial and optical S/PDIF, ARC and I2S ports, optimized for audio
  • Proprietary optimized ARM chip offers the shortest signal path possible, making 5 chips redundant.
    Includes MQA® decoder/renderer and digital filter selection
  • Proprietary Signalyst filters (two included at launch)
  • Proprietary 4-pin Ferrum connector for HYPSOS
  • Balanced XLR and unbalanced RCA line outputs
  • Digital and Analogue volume control
  • EES Sabre ES9038PRO with three filter settings
  • Remote control included





DAC chip:   ESS Sabre ES9038PRO
DAC resolution:   768 kHz/32-bit, DSD 512
Digital inputs:   • USB (up to PCM 768 kHz/32-bit, DSD 512, DoP 256)
    • I2S (up to PCM 768 kHz/32-bit, DSD 512, DoP 256),    PS Audio® compatible
    • ARC (up to PCM 192 kHz/24-bit), TV input with CEC
    • AES/EBU (up to PCM 192 kHz/24-bit, DoP 64)
    • Optical S/PDIF (up to PCM 96 kHz/24-bit guaranteed; should work up to PCM 192 kHz/24-bit and DoP 64 – depends of user’s optical cable and transmitter)
    • Coaxial S/PDIF (up to PCM 192 kHz/24-bit, DoP 64)
MQA®:   decoder and renderer (on all digital inputs)
Analog inputs:   RCA
Analog input Vmax:   9.5 VRMS (2–3.5 VRMS recommended)
Analogue input imp.:   47 kΩ
Line outputs:   balanced XLR; unbalanced RCA
Volume control:   analogue with bypass option / digital for DAC operation only
Output level:   @0 dBFS, 1 kHz sine 10 VRMS balanced, 5 VRMS unbalanced
Frequency response:   10 Hz – 200 kHz +/- 0.1 dB
DAC THD:   -121 dB (0,00009%); THD+N: -115 dB (unweighted)
Analog input THD:   -123 dB @ 2 VRMS output level
Dyn. range analog:   127 dB (A-weighted)
Dyn. range digital:   122 dB (A-weighted)
Crosstalk:   -120 dB for 1 kHz, better than -100 dB for 20 Hz -20 kHz
Output impedance:   22 Ω unbalanced
Output impedance:   44 Ω balanced
Power consumption:   10 W idle / 15 W max
Power inputs:   22-30 VDC
    • proprietary FPL 4-pin DC connector (FPL)
    • 5.5/2.5 mm DC connector centre positive
Power adapter:   100-240 VAC to 24 VDC
Dimensions:   21.7 cm x 20.6 cm x 5 cm / 8.6″ x 8.1″ x 2.0″
Weight:   1.8 kg / 3.97 lb
