Features

Absorption treatment range: 45 Hz to 250 Hz
High Efficiency bass trap

Fixing System: Mechanical Dimensions: 595x595x129mm

An Artnovion signature panel

Usually the most noticeable problems in a recording or post-production studio are caused by low frequencies, and are often overlooked in traditional acoustic treatments. The Athos Bass trap HP effectively treats low frequencies between 45Hz and 250Hz (tuned to 65Hz). It is a high performance treatment for low frequencies, designed to be placed in corners for maximum efficiency. Made from wood, from a sustainable and renewable source, it's unique design is a welcome addition to any space.

Double Membrane Bass Trap

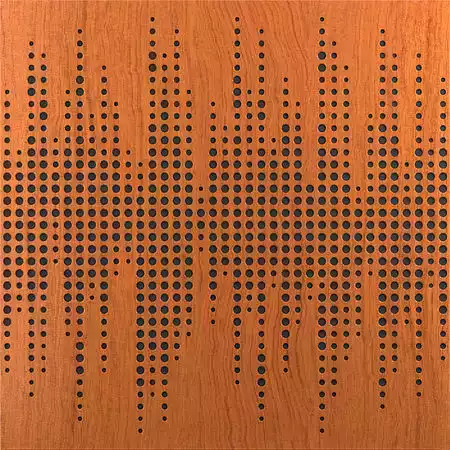

Athos line is the latest addition to our Pro Audio range. This striking panel displays the signature design of Artnovion's founder and CEO Jorge Castro.

Pressure, velocity plus Helmholtz bass trap

High Efficiency bass trap.

Fixing System: Mechanical

Dimensions: 595x595x129mm

OVERVIEW

An Artnovion signature product

This striking panel displays the signature design of Artnovion's founder and CEO Jorge Castro.

Finishing Material:

Wood FG (Furniture grade))

Fire rate classification

FG | Furniture Grade Class

Acoustic performance:

Absorption range | 75Hz to 125Hz
Tuned Frequency: 85 Hz

FG

Dim. | 595x595x129mm

Weight | Kg*

Units per box | 2

Box Weight | 14,60Kg*

* Approximate weight

Installation - Mechanical

Packing Dimensions - 640x385x640mm

* Approximate weight
