Thames - Absorber
Absorption Coefficient
Features
Absorption range: B
Acoustic Class:
Absorption coefficient (αw) =
Fire rate classification:
FG | Furniture Grade
FR+| M1 (France); Class 1&2 BS(UK)
Material: Wood FG or Wood FR+
Fixing System: Fixart Tube l Fixart Metal
Dimensions:
FG: 1190x595x58mm
FR+ | FR++: 1190x595x60mm

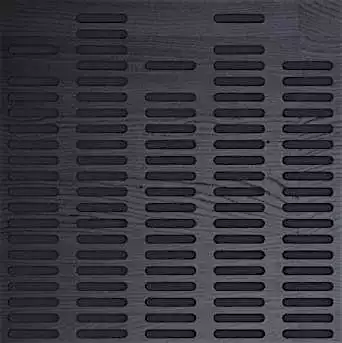

Thames acoustic Tile

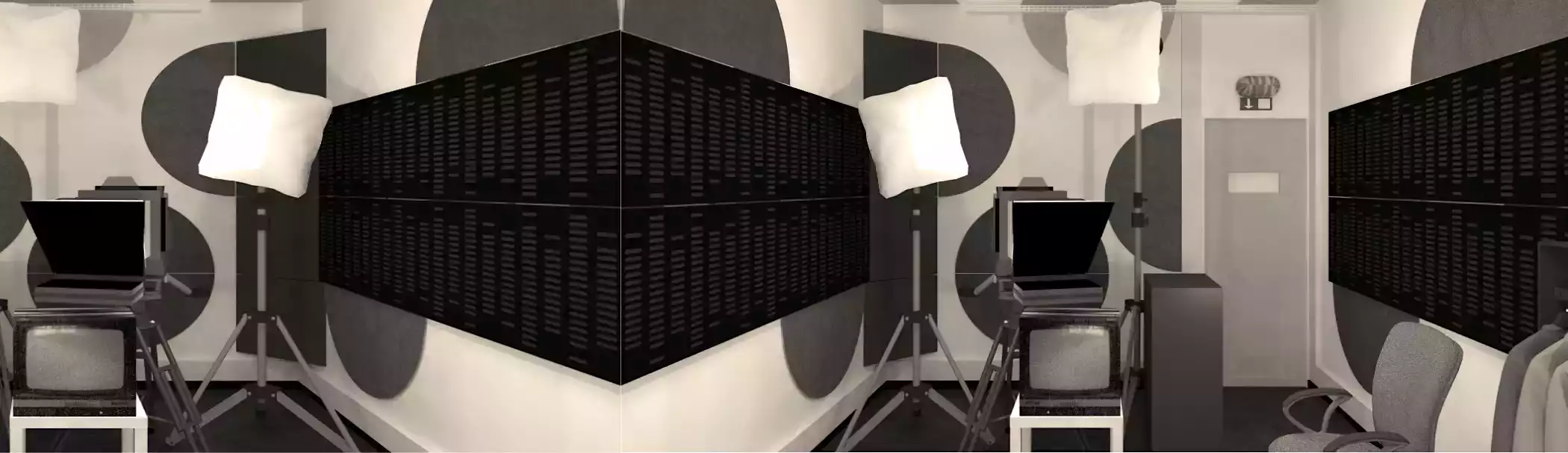

Thames W - Absorber was designed specifically for the broadcast market. This large scale panel is perfect for wall-to-wall, high quality sound absorption, used to create high-fidelity recording and listening environments. Developed around our FixArt Tube mechanical installation system, the panels is fully decoupled from it's mounting surface, increasing it's efficiency not only from the resulting air gap, but also in stopping structural vibration that can be problematic in multiple use recording studios. It's installation system drastically simples studio design, with an accessible cavity allowing for cabling, or surface mounted amenities. Available in a selection of high quality lacquered and wood finishes. Thames is the future of studio design.
The ultimate Broadcast panel
Available in a selection of high quality lacquered and wood finishes. Thames is the future of studio design.
Material: Wood FG or Wood FR+
Fixing System: Fixart Tube l Fixart Metal
Dimensions:
FG: 1190x595x58mm
FR+ | FR++: 1190x595x60mm
OVERVIEW
An absorber designed for optimal performance.
- Finishing Material:
- Wood FG (Furniture grade)
Wood FR+ (Improved Fire Rate)
Wood FR++ (Ultimate Fire Rate) - Fire Rate classification:
- FG | Furniture Grade Class
FR + | M1 (NFP 92-507) ; Class 1&2 (BS 476-7)
FR ++ | M1 (NFP 92-507) ; Class 1 (BS 476-7); B1 (DIN 4102-1); B, S2,d0 (EN 13501-2); HF 1 (UL 94). - Acoustic performance:
- Absorption range |
Acoustic class |
Absorption coef. (αw) | - FG
- Dim. | 1190x595x58mm
Weight | 3,3 Kg*
Units per box | 4
Box Weight | 15,8 Kg* - FR+ | FR++
- Dim. | 1190x595x60mm
Weight | Kg*
Units per box | 4
Box Weight | Kg* - Installation - Fixart Tube | Fixart Metal
- Packing Dimensions - 1235x250x640mm
- * Approximate weight
- Technical Files
- Installation Guide
Choose your Finish
- H Blanc FG
- H Blanc FR+
- H Blanc FR++
- H Cerise FG
- H Cerise FR+
- H Cerise FR++
- H Marron FG
- H Marron FR+
- H Marron FR++
- H Noir FG
- H Noir FR+
- H Noir FR++
- H Rouge FG
- H Rouge FR+
- H Rouge FR++
- H Wenge FG
- H Wenge FR+
- H Wenge FR++
- V Blanc FG
- V Blanc FR+
- V Blanc FR++
- V Cerise FG
- V Cerise FR+
- V Cerise FR++
- V Marron FG
- V Marron FR+
- V Marron FR++
- V Noir FG
- V Noir FR+
- V Noir FR++
- V Rouge FG
- V Rouge FR+
- V Rouge FR++
- V Wenge FG
- V Wenge FR+
- V Wenge FR++
