Andes - Absorber 2.0
Absorption Coefficient
Features
Absorption range: 160 Hz to 5000 Hz
Acoustic Class: A
Absorption coefficient (αw) = 1,0
Fire rate classification:
FG | Furniture Grade
FR+| M1 (France); Class 1&2 BS (UK)
Material: Fabric FG or Fabirc FR+
Fixing System:
Fixart Tube | Fixart Metal | GlueArt
Dimensions: 595x595x85mm
Andes Acoustic Tile

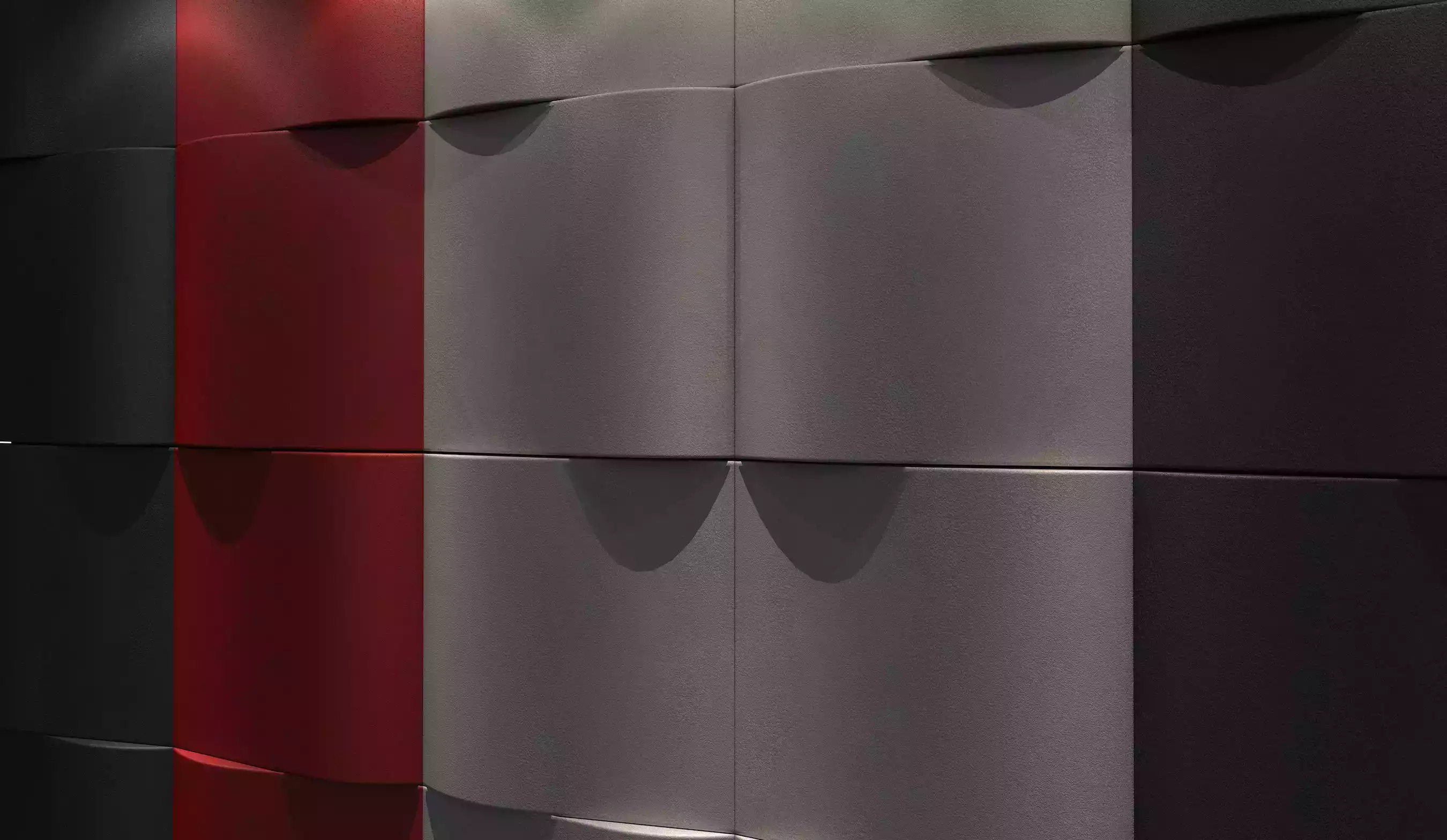

Andes Absorber was designed to control noise, sound reflections and excessive reverberation, in a decorative manner. Manufactured with premium materials and carefully wrapped with acoustic fabric, this product has an outstanding performance from mid to high frequencies.
Available in standard market furniture grade fire rate, appropriate for home use applications, compliant with all domestic level fire grades; and Fire Rate + fire resistance, compliant with entry-level fire resistance, certified under specific European and American regulations. Available in 7 standard colours, plus customised colours on demand.
An elegant premium acoustic treatment !

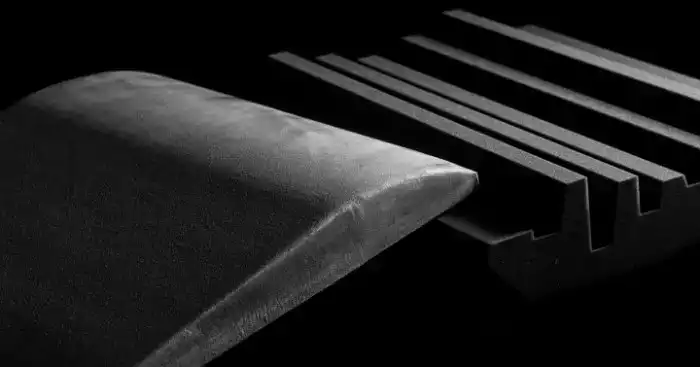

Using a patented technique, the rear crenellated surface of the panel was designed to optimise performance by increasing surface area, reduce raw material waste and improve shipping, reducing packaging size and increasing the products resistance.
Fixing System:
Fixart Tube l Fixart Metal | GlueArt
Dimensions: 595x595x85mm
OVERVIEW
An elegant premium acoustic treatment.
- Finishing Material:
- Fabric FG (Furniture grade)
Fabric FR+ (Improved Fire Rated) - Fire Rate classification:
- FG | Furniture Grade Class
FR + | M1 (NFP 92-507) ; Class 1&2 (BS 476-7) - Acoustic performance:
- Absorption range | 160Hz to 5000Hz
Acoustic class | A
Absorption coef. (αw) | 1,0(M)) - FG
- Dim. | 595x595x85mm
Weight | 1,05 Kg*
Units per box | 6
Box Weight | 8,50 Kg* - FR+
- Dim. | 595x595x85mm
Weight | Kg*
Units per box | 6
Box Weight | Kg* - Installation - Fixart Tube | Fixart Metal | GlueArt
- Packing Dimensions - 640x385x640mm
- * Approximate weight
- Technical Files
- Sound Absorption Test ISO 354
- Installation Guide
Choose your Finish:
- FG Bianco
- FG Bordo
- FG Gentian
- FG Grigio
- FG Nebbia
- FG Nero
- FG Noce
- FR+ Apple Green
- FR+ Asparagus
- FR+ Battleship Grey
- FR+ Black
- FR+ Blue Grey
- FR+ Burgundy
- FR+ Cadet Grey
- FR+ Charcoal
- FR+ Coffee
- FR+ Crimson
- FR+ Eggshell
- FR+ Ivory
- FR+ Lilac
- FR+ Navy
- FR+ Prussian Blue
- FR+ Salmon
- FR+ Sand
- FR+ Slate Grey
- FR+ Sunglow
- FR+ Turquoise
- FR+ Violet Blue
