Features

Absorption range: 315 Hz to 3150 Hz
Acoustic Class: B
Absorption coefficient (αw) = 0,85

Fire rate classification:
FG | Furniture Grade
FR+| M1 (France); Class 1&2 BS (UK)

Material: Fabric FG| Fabric FR+
Fixing System: FixArt Baffle (Included)
Dimensions:
FG | 1190x595x42mm
FR+ | 1190x595x42mm

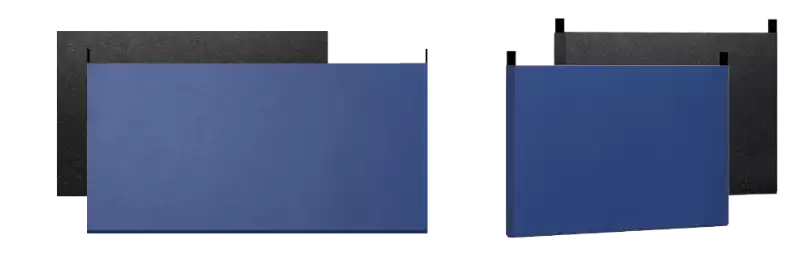

Kulm - Baffle

Kulm Baffle is a versatile baffle for ceiling mounted absorption. Ceiling baffles are an extremely efficient option for any space, providing absorption on both sides of the panel. A practical solution for a myriad of environments, especially from large open-plan spaces, such as office, broadcasting or industrial applications, but also for smaller spaces with limited wall space. Distancing the panel from any opposing surfaces drastically increases its absorption for mid-high frequencies, making it an ideal solution for open environments with a very high reverberation time.

Available with fully adjustable hanging system and in a selection of premium fabric finishes.

Absorption range: 315 Hz to 3150 Hz
Acoustic Class: B
Absorption coefficient (αw) = 0,85

Fixing System: Mechanical
Dimensions:
FG | 1190x595x42mm
FR+ | 1190x595x42mm

OVERVIEW

A practical and efficient acoustic solution

Finishing Material:

Fabric FG (Furniture grade)
Fabric FR+ (Improved Fire Rate)

Fire Rate classification:

FG | Furniture Grade Class
FR + | M1 (NFP 92-507) ; Class 1&2 (BS 476-7)

Acoustic performance:

Absorption range | 315 Hz to 3150 Hz
Acoustic class | B
Absorption coef. (αw) | 0,85

FG

Dim. | 1190x595x42mm
Weight | Kg*
Units per box | 4
Box Weight | 9 Kg*

FR+

Dim. | 1190x595x42mm

Weight | Kg*

Units per box | 4

Box Weight | Kg*

Installation - FixArt Baffle (Included)

Packing Dimensions - 1235x250x640mm

* Approximate weight

Technical Files
