Features

Acoustic Class C | (αw) = 0,7(M)

Material: Wood FG | Wood FR+

Fire rate classification:
FG | Furniture Grade
FR+| M1 (France); Class 1&2 BS(UK)

Fixing System:
Fixart Tube | Fixart Metal | GlueArt

Dimensions:
FG | 595x595x58mm FR+ | 595x595x60mm

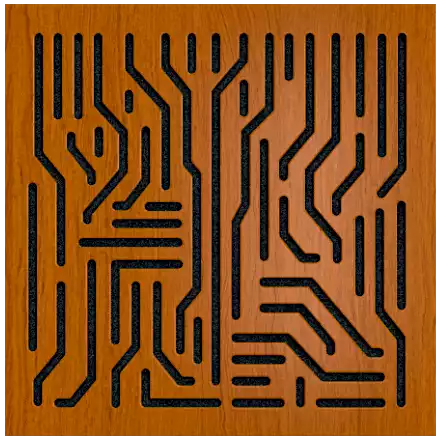

Azteka Acoustic Tile

Azteka acoustic panels were designed to reduce standing waves and preventing them from filtering, drastically improving speech clarity. Azteka's performance begins at 315 Hz and offers effective and even absorption up to 3150 Hz. Azteka is an impressive combination of unique Artnovion acoustic design with high performance acoustical cores. Azteka panels can be effortlessly installed on walls or ceilings.

A millenary inspiration!

Available in standard market furniture grade fire rate, appropriate for home use applications, compliant with all domestic level fire grades; and Fire Rate + fire resistance, compliant with entry-level fire resistance, certified under specific European and American regulations.

Fixing System:
Fixart Tube | Fixart Metal | GlueArt
Dimensions:
FG | 595x595x58mm
FR+ | 595x595x60mm

OVERVIEW

A millenary inspiration for unique acoustical design and performance.

Finishing Material:

Wood FG (Furniture grade)
Wood FR+ (Improved Fire Rated)

Fire Rate classification:

FG | Furniture Grade Class
FR + | M1 (NFP 92-507) ; Class 1&2 (BS 476-7)

Acoustic performance:

Absorption range | 315Hz to 3150Hz
Acoustic class | C
Absorption coef. (αw) | 0,7(M)

FG

Dim. | 595x595x58mm
Weight | 1,55 Kg*
Units per box | 8
Box Weight | 15,45 Kg*

FR+

Dim. | 595x595x60mm
Weight | Kg*
Units per box | 6
Box Weight | Kg*

Installation - Fixart Tube | Fixart Metal | GlueArt

Packing Dimensions - 640x385x640mm

* Approximate weight

Technical Files

Sound Absorption Test EN ISO 354-2003

Installation Guide
