Features

Acoustic Class C | (αw) = 0,7(M)
Material: Wood FG | Wood FR+

Fire rate classification:
FG | Furniture Grade
FR+| M1 (France); Class 1&2 BS(UK)

Fixing System:
Fixart Tube l Fixart Metal | GlueArt

Dimensions:
FG | 595x595x58mm
FR+ | 595x595x60mm

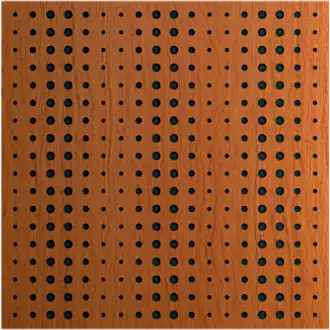

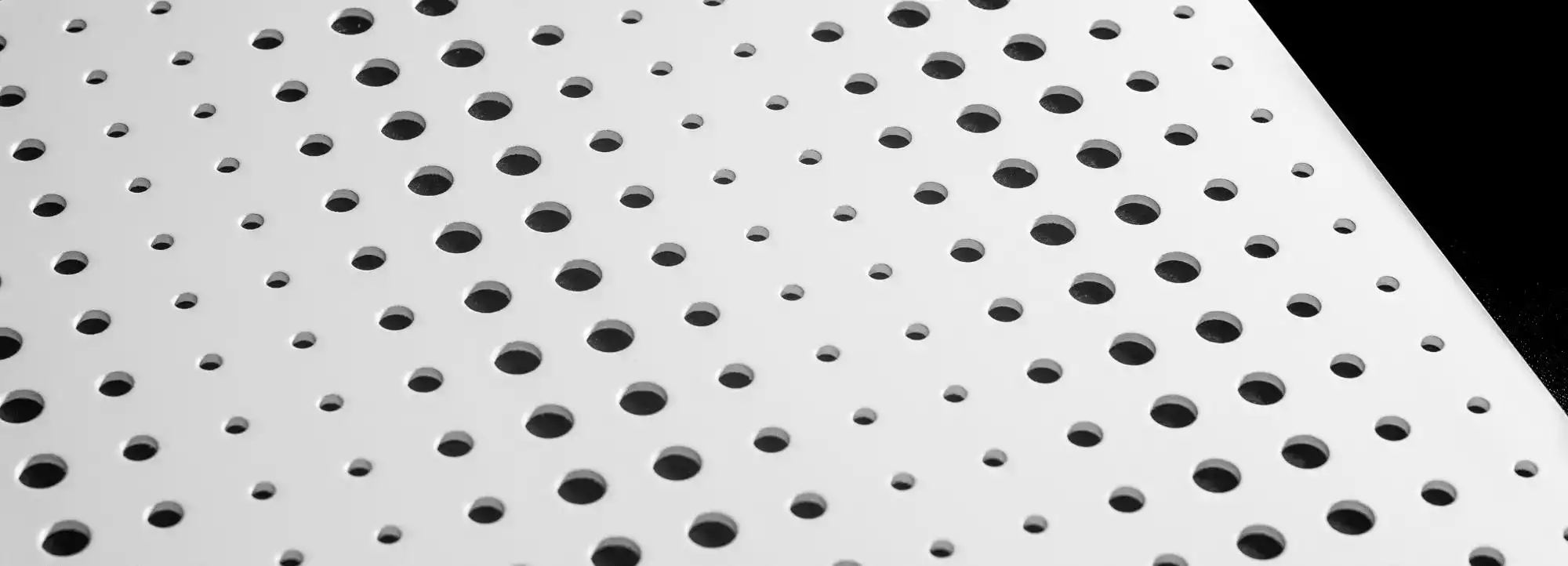

Kea Acoustic Tile

Kea is a high performance absorber, with elements of mid-high diffusion, perfect for controlling first reflections and regulating reverberation inside a room. With an absorption treatment range between 250 and 4000 Hz, KEA can be easily mounted on walls and ceiling.

Available in standard market furniture grade fire rate, appropriate for home use applications, compliant with all domestic level fire grades; and Fire Rate + fire resistance, compliant with entry-level fire resistance, certified under specific European and American regulations.

An exquisite hybrid panel.

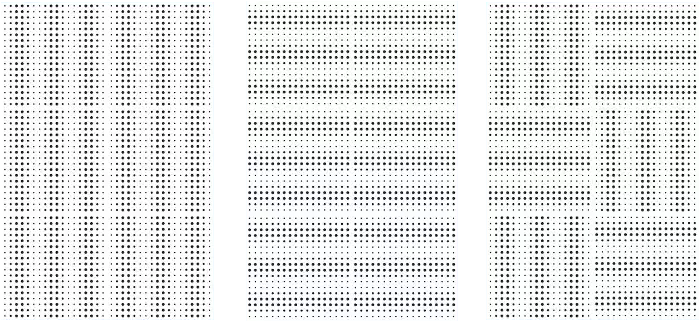

Kea's 3D pattern, an Artnovion trademark, allows you to easily combine it with itself, or even with other panels from our collection. Create a mesmerizing design across your walls, turning your spaces into unique environments.

Fixing System:
Fixart Tube l Fixart Metal | GlueArt
Dimensions:
FG | 595x595x58mm
FR+ | 595x595x60mm

OVERVIEW

An exquisite hybrid panel.

Finishing Material:

Wood FG (Furniture grade)

Wood FR+ (Improved Fire Rated)

Fire Rate classification:

FG | Furniture Grade Class

FR + | M1 (NFP 92-507) ; Class 1&2 (BS 476-7)

Acoustic performance:

Absorption range | 315Hz to 3150Hz

Acoustic class | C

Absorption coef. (αw) | 0,7(M)

FG

Dim. | 595x595x58mm

Weight | Kg*

Units per box | 8

Box Weight | 17,20 Kg*

FR+

Dim. | 595x595x60mm

Weight | Kg*

Units per box | 6

Box Weight |Kg*

Installation - Fixart Tube | Fixart Metal | GlueArt

Packing Dimensions - 640x385x640mm

* Approximate weight

Technical Files

Installation Guide
