Features

Acoustic Class C | (αw) = 0,7(M)

Material: Wood FG or Wood FR+

Fire rate classification:
FG | Furniture Grade
FR+| M1 (France); Class 1&2 BS(UK)

Fixing System:
Fixart Tube | Fixart Metal | GlueArt

Dimensions:
FG | 595x595x58mm
FR+ | 595x595x60mm

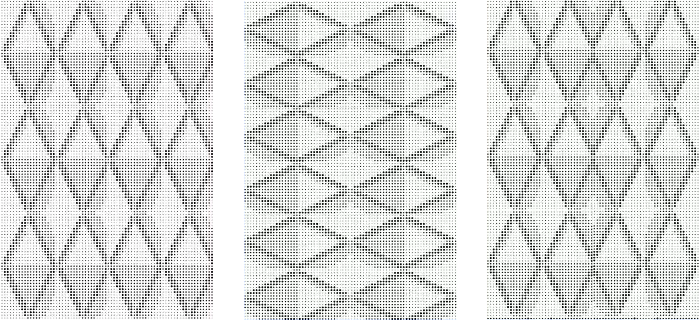

Petra Acoustic Tile

Flat reflective surfaces can cause interfering reflections and excessive reverberation that restrict functionality in a myriad of projects in recording or post-production studios. Taking into account the specific need of audio professionals, Artnovion developed the Petra Absorber, a decorative and innovative panel with an acoustically optimised perforation pattern that eliminates sound radiation effects, offering reflection and reverberation control. Petra is available in different finishes and has an easy mounting system. Available in standard market furniture grade fire rate, appropriate for home use applications, compliant with all domestic level fire grades; and Fire Rate + fire resistance, compliant with entry-level fire resistance, certified under specific European and American regulations.

A flagship product in design and acoustical performance.

Available in standard market furniture grade fire rate, appropriate for home use applications, compliant with all domestic level fire grades; and Fire Rate + fire resistance, compliant with entry-level fire resistance, certified under specific European and American regulations.

Fixing System:
Fixart Tube | Fixart Metal | GlueArt
Dimensions:
FG | 595x595x58mm
FR+ | 595x595x60mm

OVERVIEW

A flagship product in design and acoustical performance.

Finishing Material:

Wood FG (Furniture grade)
Wood FR+ (Improved Fire Rated)

Fire Rate classification:

FG | Furniture Grade Class
FR + | M1 (NFP 92-507) ; Class 1&2 (BS 476-7)

Acoustic performance:

Absorption range | 315Hz to 3150Hz
Acoustic class | C
Absorption coef. (αw) | 0,7(M)

FG

Dim. | 595x595x58mm
Weight | 1,65 Kg*
Units per box | 8
Box Weight | 15,55 Kg*

FR+

Dim. | 595x595x60mm
Weight | Kg*
Units per box | 6
Box Weight | Kg*

Installation - Fixart Tube | Fixart Metal | GlueArt

Packing Dimensions - 640x385x640mm

* Approximate weight

Technical Files

Sound Absorption Test EN ISO 354-2003

Installation Guide
