Features

Scattering range: 600 Hz to 6000 Hz

Fire rate classification:
FG | Furniture Grade

Material: Wood FG
Fixing System: Mechanical ( Included )
Dimensions: 595x595x65mm

Logan Acoustic Diffuser Tile

Logan Diffuser provides diffusion over any bandwidth, given the precise width and depth of the integrated surface treatment. The scattering begins at 400 Hz and goes up to 4000 Hz. Usable for all noise control, but above all for musical applications.

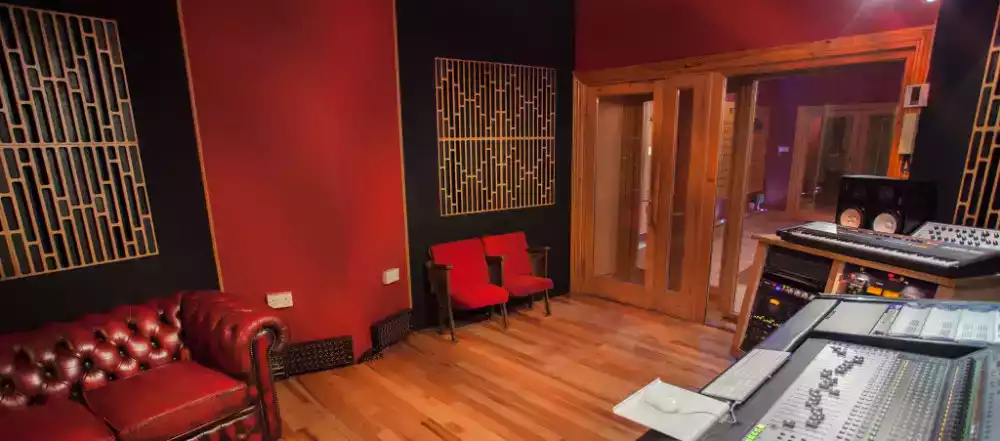

Logan is a high quality and high performance solution for broadcasting, recording or post production studios, and music practice rooms. With a furniture grade quality and available in several woods and finishes.

A wood diffuser for any environment

Logan Diffuser is an aesthetically pleasing addition to any space.

Scattering range: 600 Hz to 6000 Hz

Material: Wood FG

Fixing System: Mechanical ( Included )
Dimensions: 595x595x65mm

OVERVIEW

A furniture grade wood diffuser for any environment.

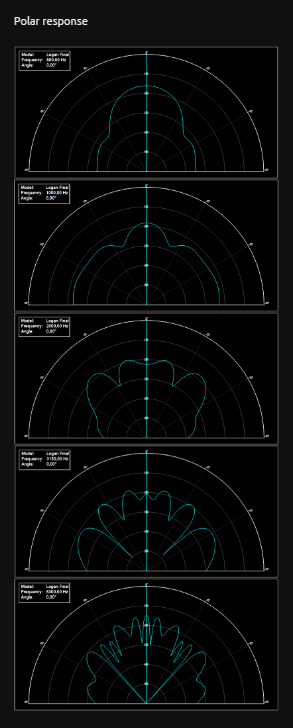

Acoustic performance:

Scattering range | 600Hz to 6000Hz

FG

Dim. | 595x595x65mm
Weight | 3,65 Kg*
Units per box | 4
Box Weight | 17,35 Kg*

Installation - Mechanical ( Included )

Packing Dimensions - 640x385x640mmm

* Approximate weight
Currently not available in US Market.

Technical Files

Installation Guide
